Description

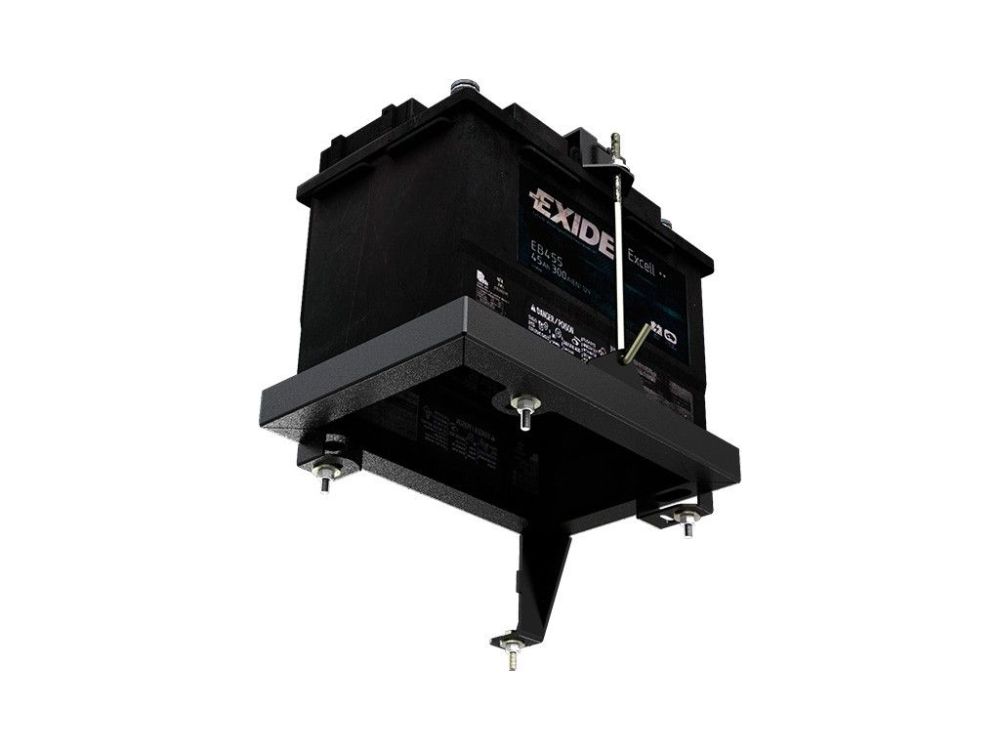

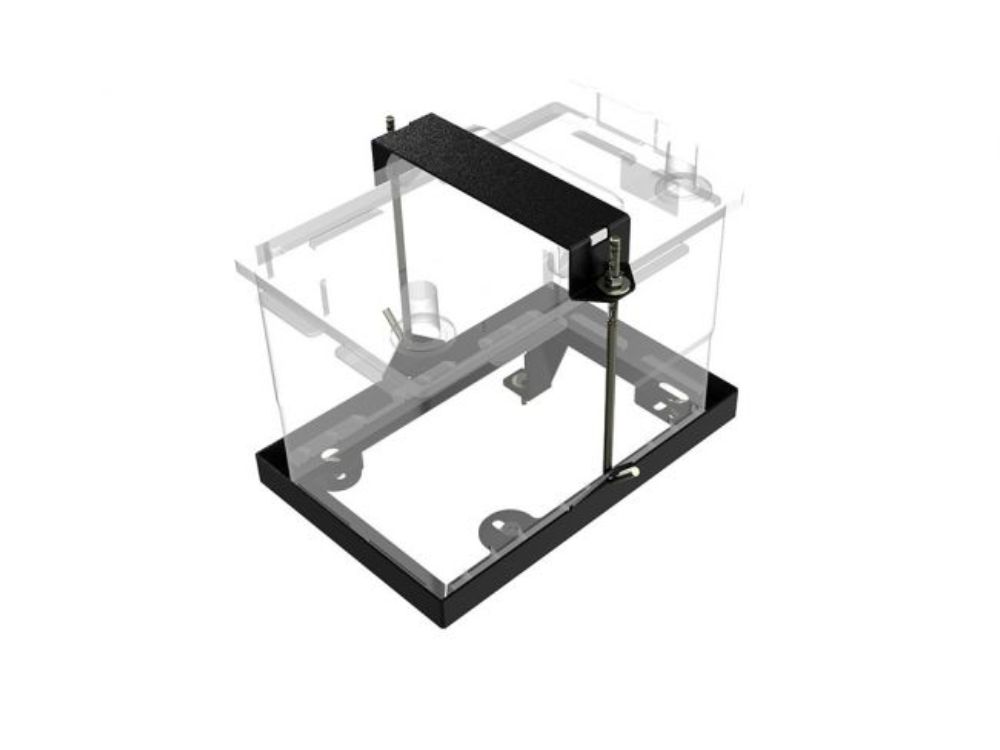

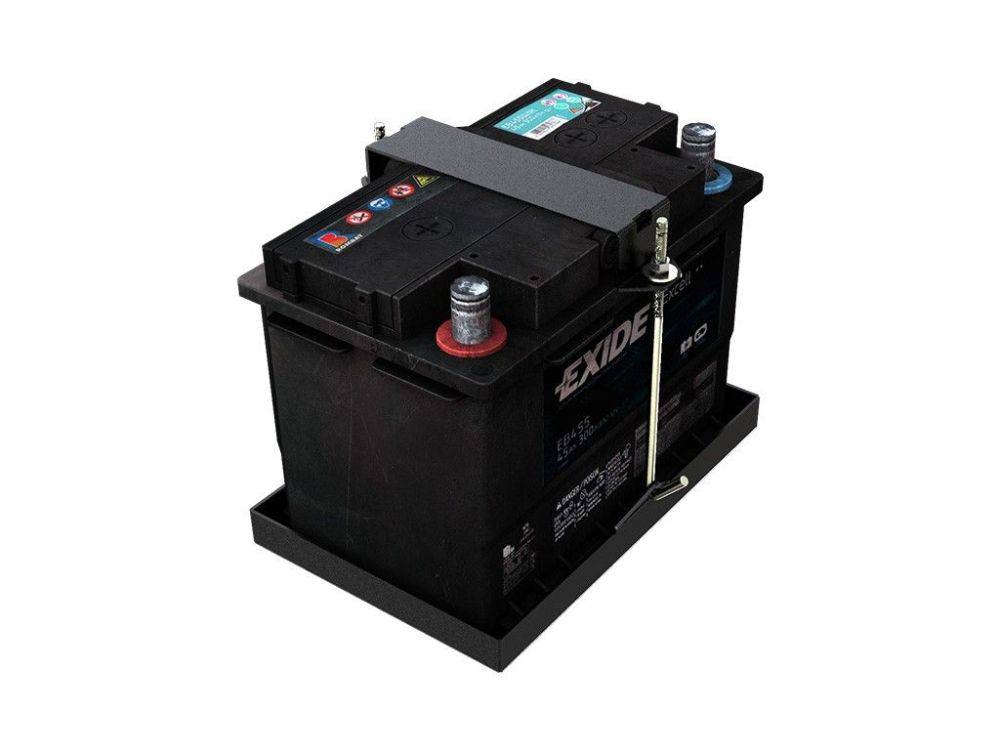

• A bracket that secures an additional 70A battery in the engine compartment of both the Toyota Hilux Revo and Toyota Fortuner (2.4GD & 2.8GD) diesel models.
• Fits to the existing mounting holes and an additional drilled hole.
• Supplied with installation and detailed fitting instructions.
• Fits Right Hand Drive Vehicles only.

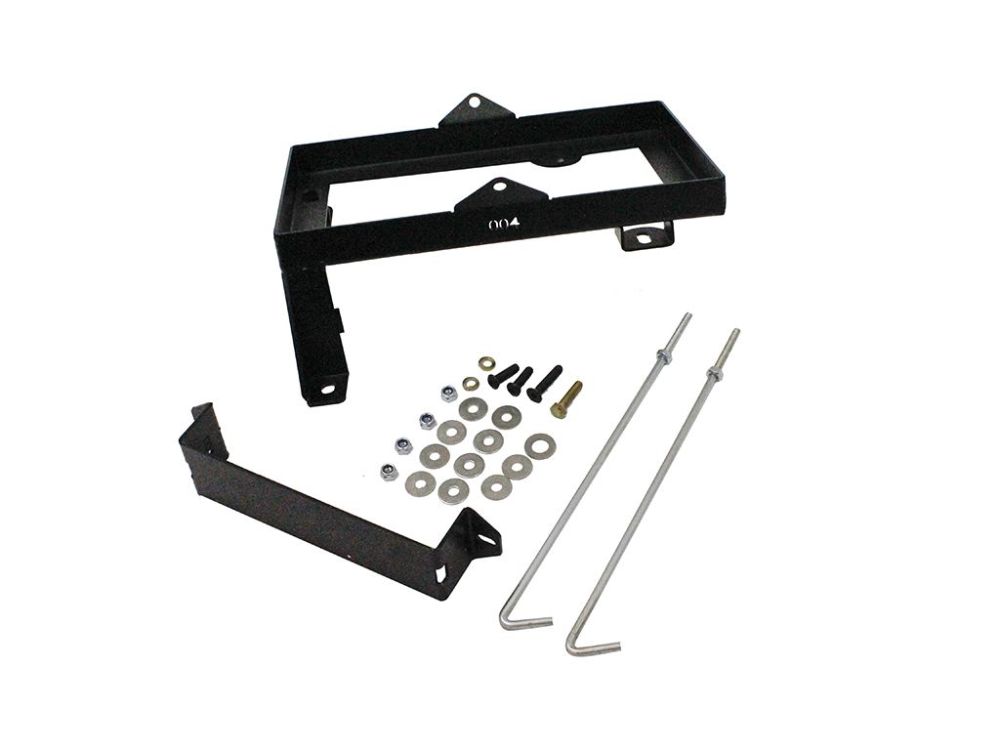

Consists of:

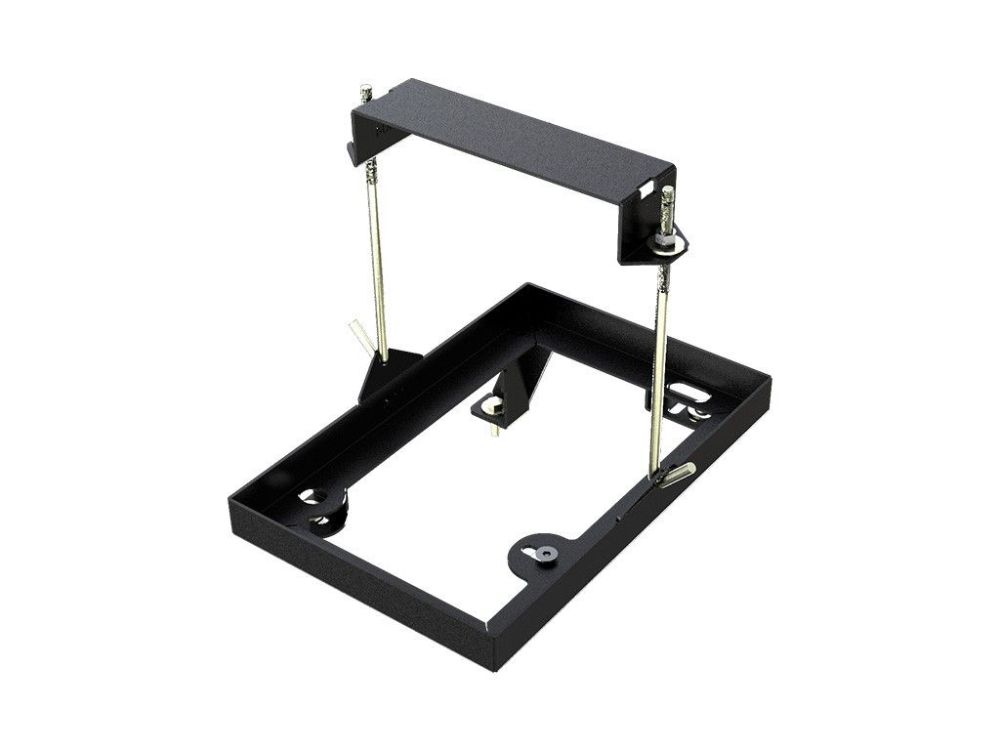

1 x Battery Tray Bracket
1 x Battery Top Clamp
2 x J Clamps
Installation Hardware
Fitting Instructions

Materials used:
Black powder coated steel

Product Dimensions:
283mm (11.1″) L x 220mm (8.7″) W x 303mm (11.9″) H

The dimensions of the maximum battery size that the Toyota Hilux/Fortuner (2016-Current) Battery Bracket can hold is:
278mm (10.9″) L x 175mm (6.8″) W x 190mm (7.5″) H.

Weight:
1.2kg (2.6lbs)
